"Lower Power" LPDDR4/3 Devices Test System

Parallel, Multi-DUT testing in an open architecture

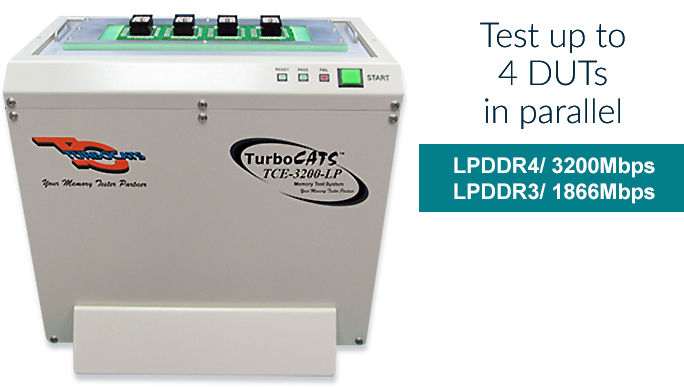

Testing LPDDR4, LPDDR3 devices is made fast and simple with the "Lower Power" LPDDR4/3 TCE-3200LP test system. It can be configured up to 32 sites in parallel and integrated to the customer selected handler.

The TCIII-3200LP IC test system can be used as a production tool as well as an engineering tool. To assist manufacturers and integrators, TurboCATS has developed a heat chamber that can be integrated with the TCE-3200LP, LPDDR4 and LPDDR3 test system. This allows the devices to be tested while being exposed to heat conditions.

Customizable Options:

  • LPDDR4 - supports data rate speed ranges from 1600 to 3200 Mbps
  • LPDDR3 - supports data rate speed ranges from 1333 to 1866 Mbps
  • Configurable: 4-32 site in parallel testing
  • Number of sites for the chassis can be requested by the customers

LPDDR4/3 x16 bits or x32 bits devices

Powerful testing capabilities in a compact design

Control Up to 8 TCE-3200LP with a Single PC

Capable of testing up to 32 LPDDR4/3 devices in parallel testing

Powerful TCE-3200LP and Heat Chamber

All-In-One Design

Heat Chamber Specifications:

Power Supply 220V, 50Hz (90 - 110% of rated voltage)
Power Consumption Power-up: 3A, 220V
Normal operation: 1.3A, 220V
Display Method Red 7 Segment LED Display
Storage Temperature -20 - 60°C
Ambient Humidity 35 - 85% RH
Temperature Range 25 - 85°C

Features:

Test LPDDR4, & LPDDR3 up to 3200Mbps

Supports LPDDR4 / LPDDR3 x16 bits or x32 bits devices
LPDDR4 tests data bandwidth up to 3200Mbps
LPDDR3 tests data bandwidth up to 1866Mbps
Tests up to 4 DUTs in parallel
Enhanced bus cycles at speed testing
Supports high bandwidth data switching
Vdd shorted protection
Comprehensive Industrial AC test patterns
Real time Idd monitoring
Idd's tests
Network interface connects up to 8 units

Specifications:

LPDDR4 clock frequencies (MHz): 800, 933, 1600
LPDDR4 data rate (Mbps): 1600, 2133, 2667, 3200
LPDDR3 clock frequencies (MHz): 667, 800, 933
LPDDR3 data rate (Mbps): 1333, 1600, 1866
Data width: 16 / 32
Address depth: 14 Rows, 10 Columns, 3 BAs
Control Signal: 2 CKE/ 2 CSn/ CA0-9
Programmable timing cycles : tRCD, tBL, tWL, tRL, tWR, tRFC, tRC, etc.
Burst Length: 8
ODT Selection support
All Standard Idd's tests according to JEDEC specifications
Minimum PC requirement: Windows 7 or better, Networking Interface

Software Screenshots:

Main Operating Window

Test File Configuration

SPD Data

Security Privilege
